排序演算法筆記 3 - Insertion Sort (插入排序法)

By Jimmy 2022-04-16
發表於 演算法 資工
排序演算法筆記 3 - Insertion Sort (插入排序法)

Insertion Sort (插入排序法) 的原理也很直觀,將要排序的元素插入已經排列好的左側陣列:

1. Insertion Sort 原理解釋

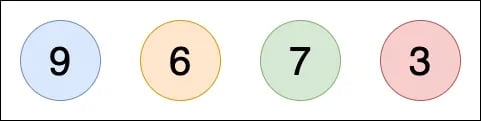

Insertion Sort

Insertion Sort

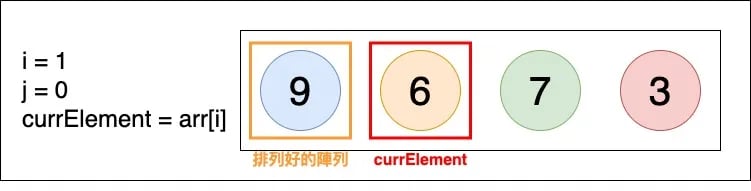

▲ 將第一個元素視為已經排列好的陣列,因此第一輪從 i = 1 開始跑

Insertion Sort

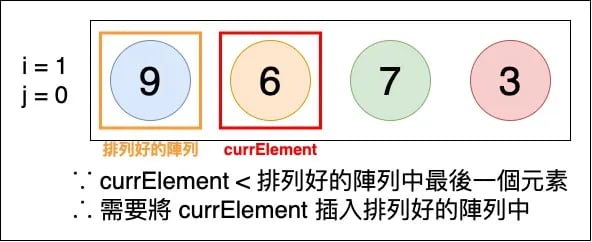

▲ 如果待排序的元素比排列好陣列中的最後一個元素還小,代表需要將待排序元素插入已經排序好的陣列中

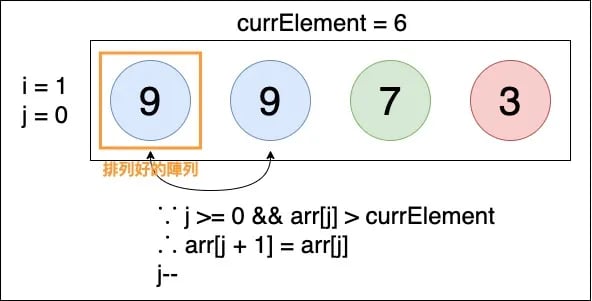

接著要判斷要插入到排列好陣列中的哪個位置:

Insertion Sort

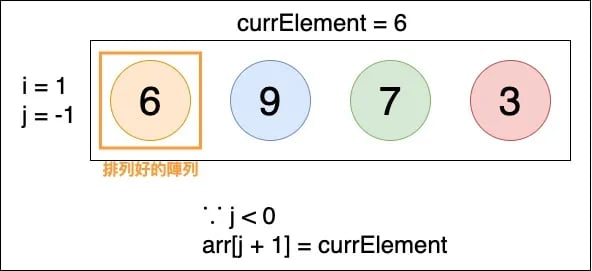

Insertion Sort

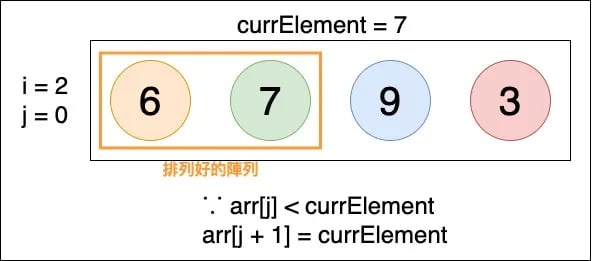

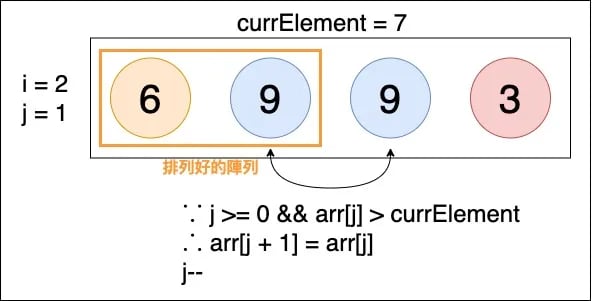

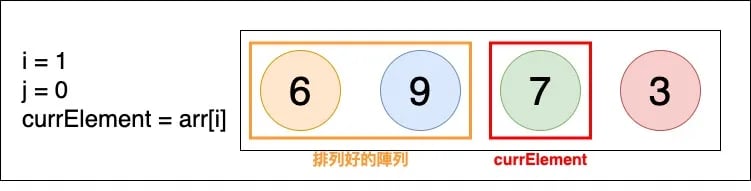

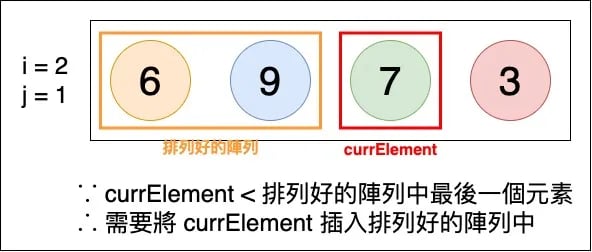

第二輪 (i = 2):

Insertion Sort

Insertion Sort

Insertion Sort

Insertion Sort

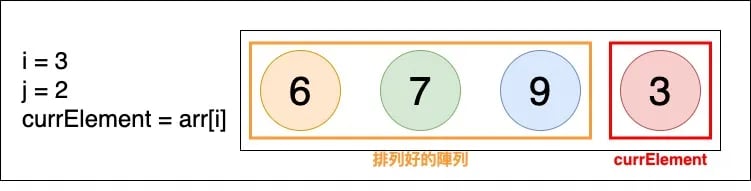

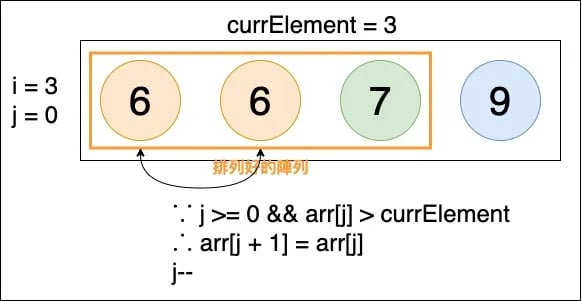

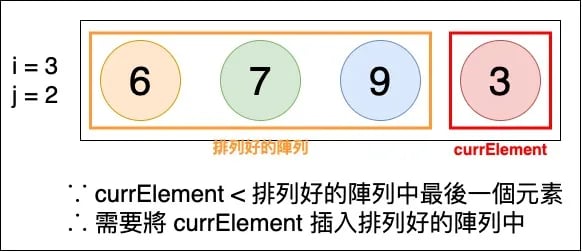

第三輪 (i = 3)

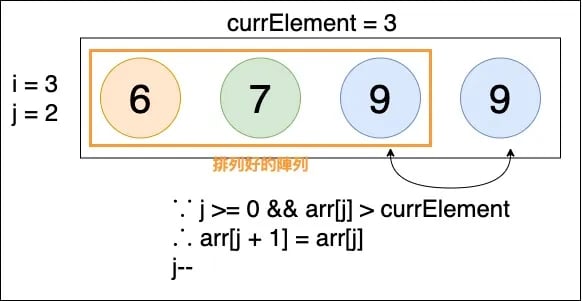

Insertion Sort

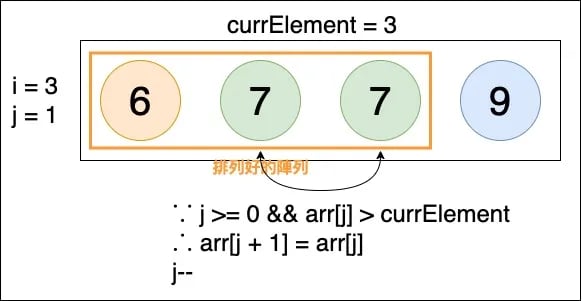

Insertion Sort

Insertion Sort

Insertion Sort

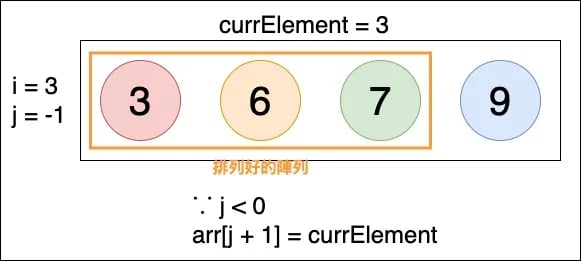

Insertion Sort

Insertion Sort

2. JavaScript 實作

function insertionSort(arr) {
  const n = arr.length;
  for (let i = 1; i < n; i++) {
    // 尚未排列的第一個元素
    const currElement = arr[i];
    // 已經排列好的陣列中最後元素的 index
    let j = i - 1;
    // 目標元素要小於已經排列好的陣列中最後的元素,才會進到此迴圈
    while (j >= 0 && currElement < arr[j]) {
      arr[j + 1] = arr[j];
      j--;
    }
    arr[j + 1] = currElement;
  }
  return arr;
}

概念圖:

Insertion Sort

3. Time Complexity

最佳:O(n)
最差:O(n2)
平均:O(n2)

4. 參考資料

大話資料結構(全新彩色版)
資料結構與演算法 (JavaScript)
